Colorado Bob's Solar Oven: More Drawings

Friday, May 29, 2009

More Drawings

Interior shell with 5" insulation space.

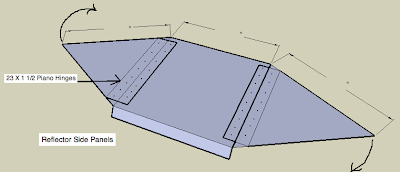

There will be two of these folding side panels with triangles mounted with piano hinges.
The long tab running along the bottom fits into a slot running around the glass cover.

The crossing lines in the rectangles , are slight bends that sheet metal workers put to flat panels to make them stiff. Again, the flanges running along one edge are inserted into a slot running around the outside edge of the glass cover.

Detail of the slot to accept the reflector flanges. Crude drawing.

A gimble rack for the bottom of the oven.

No comments:

Post a Comment

WHAT THIS IS

What This Part II

A vlog of the building of a large Telkes Type solar oven on a wheeled carriage, using heavy 26 inch garden cart wheels.
The total surface area of my glass is 673.75 sq. in. or 4.86 sq feet.
That's 24.5 X 27.5 inches.
The reflectors are 6,129 sq in. or 42.56 sq feet .
That's 8.82 to 1
47.42 sq feet of total collecting power going into a box that is 10.89 cu. feet of space. Insulated with 3 types of insulation 5 inches thick.
The oven is all steel construction. Construction began on June 1st 2009, and is documented in short clips, of each day's work.
The project begins on June 1st 2009 in the archives .

What This I
For 40 years the concept of solar ovens has rotated around the idea of bringing relief to a charcoal starved 3rd world. I read "Direct Use of the Sun's Energy" by Farrington Daniels in 1973. And it was 10 years old when I found it. It's the bible of solar power. Nothing has changed about the things Daniels laid out. Nothing. Materials science developed since 1964, but the things Daniels states about the sun, and the problems of capturing, and using that stored energy, it haven't changed a bit.

But back to the ovens. This spring I planted a lot of sweet corn with the idea I would cook it , and sell it on a stick. Always with the idea of using solar power to do it. So, I went looking for the state of the art in solar ovens. It's still stuck on all those charcoal burners in the 3rd world.

Which is to say , " How do we make a solar oven from cardboard, and tin foil, and heat a 3 qt pot ? "

I'm serious, a fellow perfected that oven . It's called the Global Sun Oven . You can buy one for $289 bucks. Your purchase sends one somewhere into the 3rd world as well. And they're great, but I can't cook 100 ears of corn on one, all at one time. Which made me think , neither can someone in the 3rd world. No one has designed , and built a small solar oven like a backyard grill. With wheels on one end, and handles on the other, about 4 feet long.

So, that's what this is, this is the building of that oven, with that goal in mind. All the designs, plans and clips will be free to anyone who can use them. Whether, it's tamales in Mexico, lamb in Mecca, or corn on Buddy Holly Ave.

Materials List

1 - 46.5" X 39 ft roll Reflec Tech Mirror film
1 - 4 X 25 roll Prodex Foil Insulation
6 - Rolls 2" X 60 ft. Foil Tape
1 - 6 pc. carton 2 X 48 X 24 rigid Mineral Board Isulation
1 - 4X8 Rigid Fiberglass insulation
2 - 26" spoke wire wheels w/ 3/4" bearings
2 - 3/4" nuts; 6 - 3/4" flat washers' 2 3/4" lock washers
1-20 ft 3/4" cold rolled round rod - 50" X 3/4" cold rolled round rod - axle
1 - 20 ft 1" - 1/8 angle
2 - 20 ft 1" square tube
5 - 100 count 3/16th pop rivets, small, med.
4 pcs. 2' X 10' 2' right angle 26 ga. sheet metal
5 sheets of 26 ga sheet metal 41 1/2 " X 10 " 2"
